INGENIA Compact solution for small batch sizes

INGENIA product

INGENIA is the ideal PVD coating system for frequently processed small quantities of tools per batch. With its short turnaround times it is perfect for running up to 8 batches per day, which assures great flexibility in terms of processes, coatings and products being run during a day. When used in combination with larger machines, this highly productive system helps smoothen production flows and is always ready to bridge capacity shortages. INGENIA is the right choice for all the requirements it takes to optimise your services.

  • Fastest and most flexible arc coating system
  • Ideal as dedicated production system for specialised coatings or launch of new products
  • Up to 8 batches daily
  • Evaporation of up to 2 target materials per batch
  • Available for nitride and oxide based coatings
  • Highest coating homogeneity
  • Small footprint, all components installed on a single frame

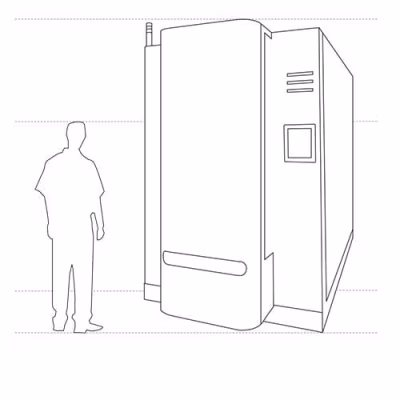

Dimensions

Dimensions
  • Length: 3490 mm
  • Width: 1649 mm
  • Height: 2685 mm
  • Footprint: 5.7 sqm
  • Weight: 3000 kg

Capacity

Capacity
