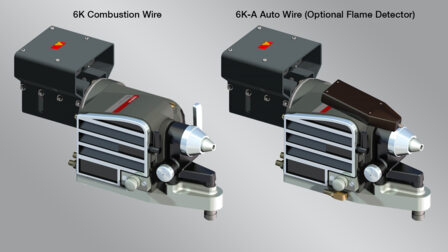

Metco 6K Series

We designed our 6K series for high-volume production in an automated environment. These guns are ideally suited for mass-production coating of:

Synchro rings

  • Piston rings
  • Tube mill applications
  • Shifter forks
  • High-volume corrosion applications
Key characteristics
  • Models available for both manual and automated gas control systems
  • High spray rate with low gas consumption
  • Powerful wire drive system for smooth and constant wire feed
  • Can be used with both hard and soft wires
  • Extension modules for internal bore applications
  • Module shaft lengths range from 152.5 – 915 mm (6 – 36 in)
Specifications
Weight 2.25 kg (5 lb)
Process gases Acetylene, Propane, Propylene, Hydrogen, Methylacetylene-Propadiene Gas, Methylacetylene-Propadiene Propane, Natural Gas (Methane), Oxygen, Compressed Air
Controller compatibility Semiautomatic 6C / 6CEW control unit
Extension modules

Extension modules are available in four lengths:

5XT-6: 152.5 mm (6 in)
3XT-1: 305 mm (1 ft)
3XT-2: 610 mm (2 ft)
3XT-3: 915 mm (3 ft)
