SM-F100 Connex

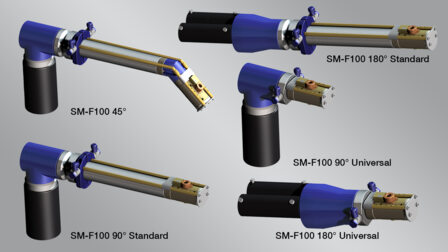

For complex geometries and internal bore applications, the SM-F100 Connex is your best choice. This gun offers a modular design, with different configuration elements to achieve various lengths and spray angles.

Key characteristics
  • Sprays several material types with a single nozzle / electrode configuration
  • Machine-mount for use with robotic or traverse mechanisms
  • Supports components with complex geometries and tight clearances
  • Compatible with controlled atmosphere spray systems
  • Highly efficient deposition and powder throughput reduces operating costs
Shaft length options
  • 280 mm (11 in)
  • 560 mm (22 in)
Specifications
Maximum power 20 kW
Process gasses Argon, Helium, Hydrogen
Weight 3 kg (6.6 lb)
Controller compatibility MultiCoat™, UniCoat™, 9MC, 9MCE
Minimum bore diameter

Atmospheric Plasma Spraying (APS) 100 mm (3.9 in)

Vacuum Plasma Spraying (VPS) 200 mm (7.9 in)
